Elegance XL system


 Elegance XL Lighting Control

INTEGRATED CONTROL FOR RESIDENTIAL OR LIGHT COMMERCIAL

Description
Elegance XL is a centralized panel-based dimming system capable of controlling up to 192 lighting loads (zones) and a host of other
electrical and motorized devices. Through the use of accessories Elegance XL provides energy management, comfort, convenience,
safety and security to residential and commercial customers.

Features:

  • Maximum number of controlled loads (zones): 192
  • Phase controlled dimming capable of 2,048 dimming levels
  • 24-load panel configuration: 6 modules containing 4 dimmers each
  • Panel capacity: 72 amps, average of 4 amps per load
  • Maximum load per dimmer: 8 amps
  • Maximum load per module: 16 amps
  • 3-Phase compatible
  • CAT5 low voltage wiring
  • Each dimming panel contains 1 SuperSTAR dry contact-closure input board:
    - 96 input maximum per SuperStar; 384 input maximum per system
    - RJ45 and punch down block connections provided
  • MCP (Master Control Panel) supports up to 4 SuperSTAR inputs
    - 2 RS-232 ports for communicating to third party systems
  • Standard vacation and alert modes
  • Soft on/of
  • All on/off mode
  • Astronomical (real time) Clock - Allows programming of up to 50 timed events, including events relative to sunrise/sunset
  • Manual Override - Provides on/off control of individual loads, bypassing the MCP
  • Multiple keypad and color options available


Dimmer Panel Specifications:
120V and 240V models available
Enclosure Dimensions

  • 44"H x 14.5"W x 3.5"D (fits in a standard 16" stud bay)
Enclosure typeFlush-mount, NEMA type 1





Dimmers

  • 24 dimmers per panel
  • Max 8A@120VAC (72A maximum per panel)
  • Max 7A@ 240VAC (63A maximum per panel)


Dimming Modules

  •   6 per panel with 4 dimmers each
  •   Contains all high voltage and low voltage connections
  •   Max 16A@120VAC (72A maximum per panel)
  •   Max 14A@240VAC (63A maximum per panel)

 Conformity


  • UL 508 listed
  • CUL C22.2 No. 14.5 listed
  • C-Tick compliant
  • California Title 24 compliant

Control Power

  • Class II low voltage transformers

Communication

  • Low voltage communication with relay panels and accessories
  • RS-232 communication for programming
  • LRS-232 communication with third party products

Capacity

  • Up to 192 loads (connect up to 8 24-load panels)
  • Up to 384 switch inputs
  • Up to 200 scenes
  • Up to 50 timed events

Warranty

  • 5-year limited warranty

NEW

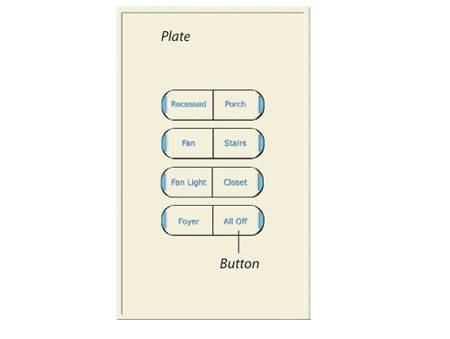

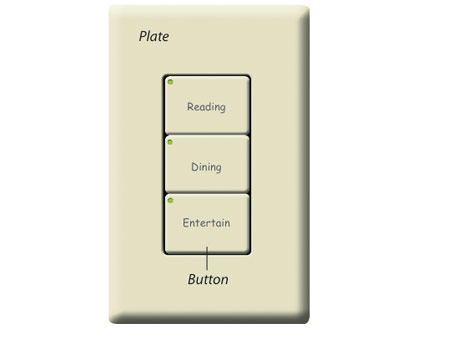

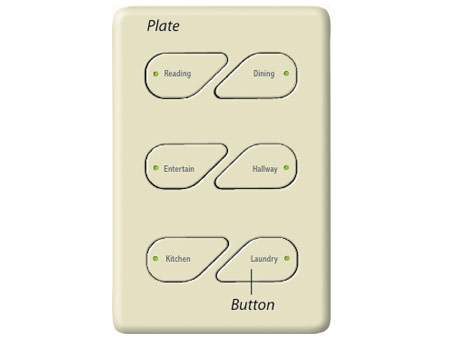

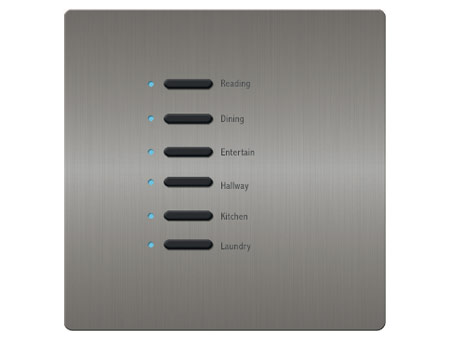

                  europa key pad                            classica  key pad                                finense key pad

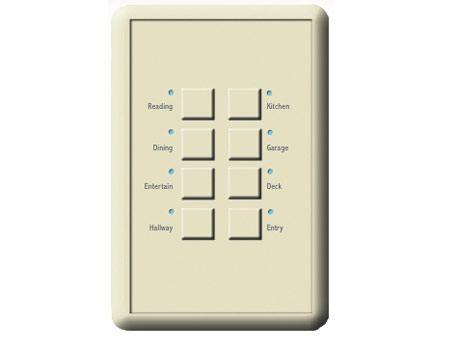

     ultra mercidese key pad                      mystique key pad                               ultimae key pad

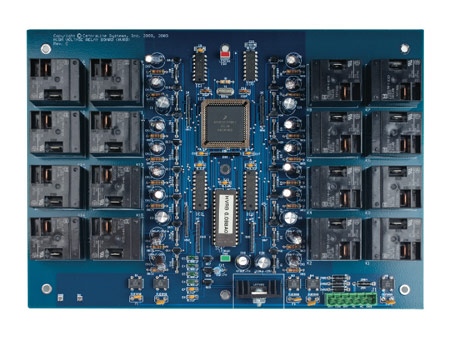

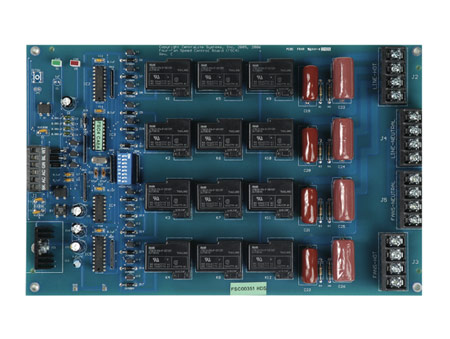

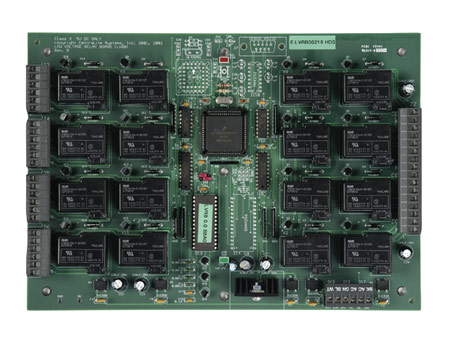

              fan control                              high voltage relay board           low voltage relay board

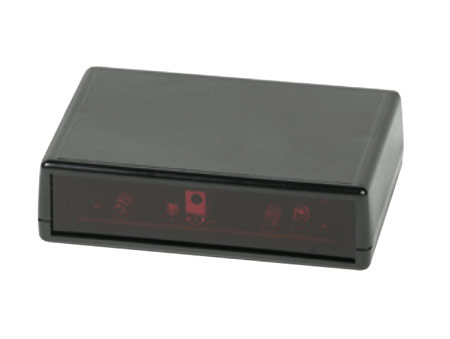

                  ir receiver
