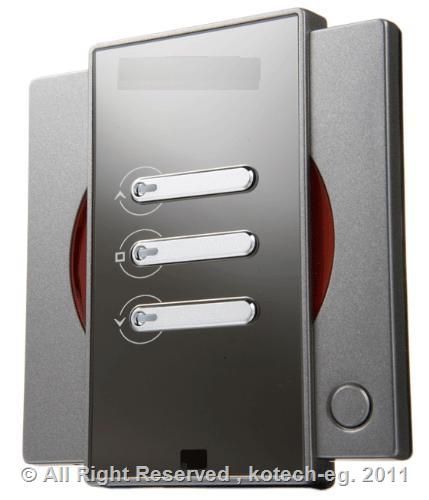

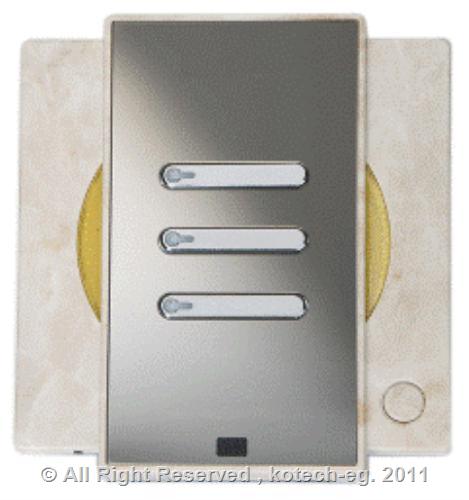

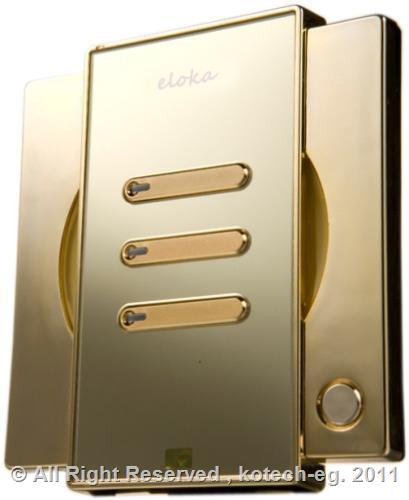

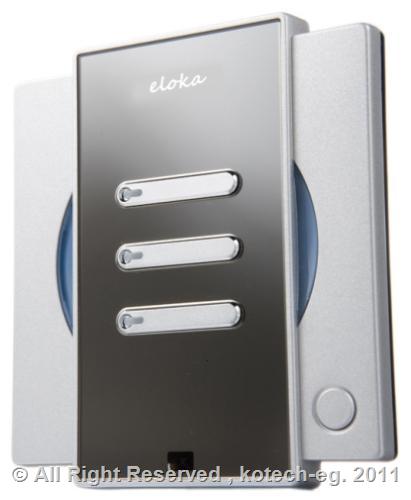

Eloka Lighting control

Images in This Category





Lighting on/off control
Three types of products depending on load(group) quantity of 1, 2 or 3.
Basically this product allows control of Lighting devices connected to each load(group) in either on or off condition.
Pressing of each load(group) control button each time changes the lighting status from on to off, then to on.
After power failure, this control recovers conditions of loads to original condition.
Lighting Dimming Control
Three types of products depending on load (group) quantity of 1, 2 or 3.
Dimming control implies control of brightness of lighting devices.
When a switch load button is pressed for 3 seconds or longer, its dimming function activates. Dimming proceeds in ten stages in sequence.
When dimming condition is either at maximum or minimum level and the group button is pressed longer, then dimming continues to the reverse order from the current stage.
After power failure, this Control recovers conditions of loads to original condition.

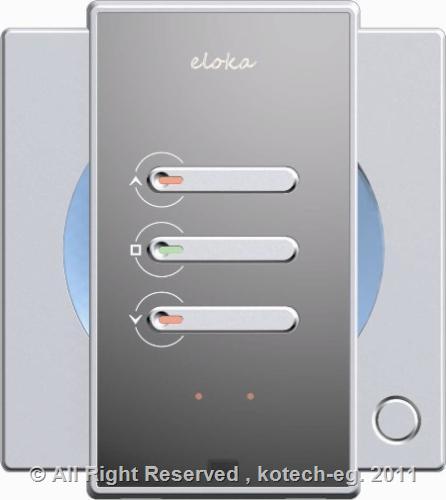

Condition display
Green LED: Lighting on
Red LED: Lighting off
Amber LED: Dimming in process
Scenario Control
Home Network System or Remote Control can be used to configure lighting devices to desired conditions and thus control multiple lighting devices at the same time.
All lights in an apartment can be controlled in batch mode to a desired condition. or their control conditions(On/Off or Dimming) can be set to user selection differently.
Maximum 8 scenarios can be stored per each Lighting control switch.
Remote Control
IR mode remote control allows control of all lighting devices in an apartment.
Mood Lamp Function
Major Specifications
Models xLS-C101x xLS-C102x xLS-C103x
Application On/Off Switch: fluorescent/incandescent/halogen/other lamps
Dimming Switch: incandescent/halogen lamps
Power AC 85V ~ AC 265V, 50 / 60Hz ± 2Hz
Max Load 300W per group
Environmental Condition Temperature: -10¡É ~ +60¡É. Humidity: 90%
Power Consumption Max 2.4W
Communication RS485
Outputs 1 Lamp 2 Lamps 3 Lamps
Dimension Surface Parts: 86(W) * 86(W)* 9.8(D)mm
Flush Parts: 47(W) * 65.7(W)* 38(D)mm

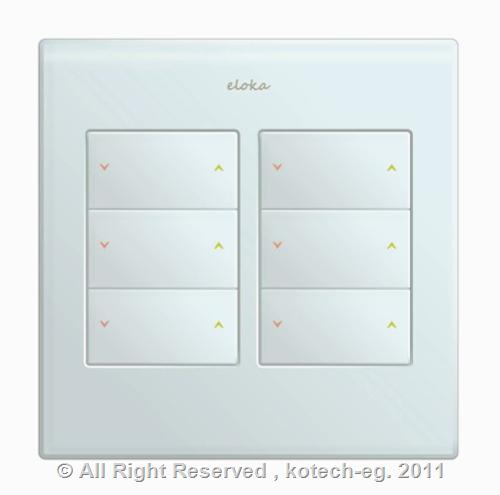

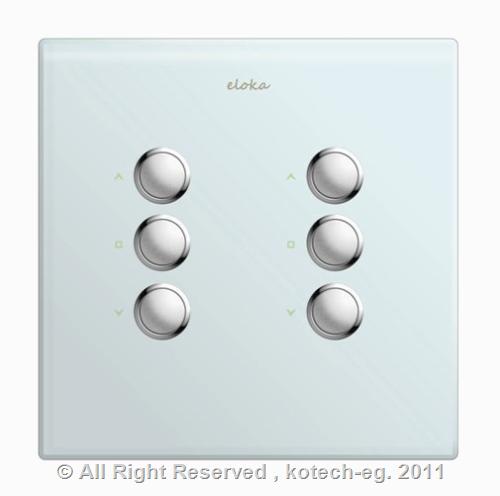

Curtain Control
Curtain Control Switches consist of three types of products depending on the number of blinds or curtains to control (1, 2 or 4).
Curtain Control Switch allows UP/DOWN, OPEN/CLOSE of each blind or curtain configured for switch.
Scenario Control
Home Network System or Remote Control can be used to configure blinds or curtains to desired conditions. Multiple blinds/curtains can be controlled in this manner.
All curtains in an apartment can be controlled in batch mode or each curtain control may be set to desired user selection(Up/Down, Open/Close) differently.
Curtain Control Switch can store up to 8 scenarios.
Remote Control
IR mode Remote Control can be used to control curtains within an apartment.
Major Specifications
Models xCS-C101x xCS-C102x
Application Blinds and curtains using an AC Motor
Max Load Max 200W/CH
Environmental Condition Temperature: -10¡É ~ +60¡É. Humidity: 90%
Condition Humidity 90%
Communication RS485
Outputs 1 EA 2 EA
Power AC 220V ± 10%, 50/60Hz ± 2Hz
Dimension Surface Parts: 86(W) * 86(W)* 9.8(D)mm
Flush Parts: 47(W) * 65.7(W)* 38(D)mm






Remote Control
IR mode Remote Control can be used to control curtain and lighting devices within an apartment.
Major Specifications
Models xRC-9000D (IrDA Mode)
Application Remote Controller for Lighting Control and Curtain Control
Environmental Condition Temperature: 0¡É ~ +60¡É. Humidity: 90%
Power 3VDC(1.5V AAA Size 2EA)
Dimension 36(W) * 190(H) * 36.5(D)




Overview

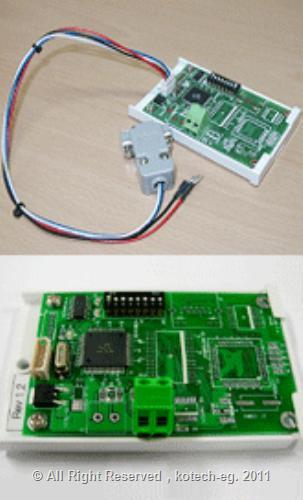

H-Bus Master Module acts as the intermediate gateway between Home Gateway and switch modules. It delivers control commands from a switch module via an external input device to pertinent lighting modules.
It uses RS-232 or RS-485 Communication to communicate with Home Gateway boards and RS-485 communication with switch modules. Communication speed used is 38,400 bps due to switch module speed.
ID configuration for communication with Home Gateway is done using dip switches. A Master Module can control up to 63 switch modules. When using 3-hole switch module, up to 189(63 * 3) groups can be controlled.
Major Specifications
Models xMM-1000D xMM-1000L
Power +12VDC (Power input from Home Gateway)
Protocol Honeywell Bus Architecture
Communication Specification RS232(Home Gateway)
RS485(Lighting & Curtain Switch)
Ethernet(TCP/IP) (Home Gateway)
RS485(Lighting & Curtain Switch)
Dimension 60mm(W)x96mm(H)x10mm(D)
